Description

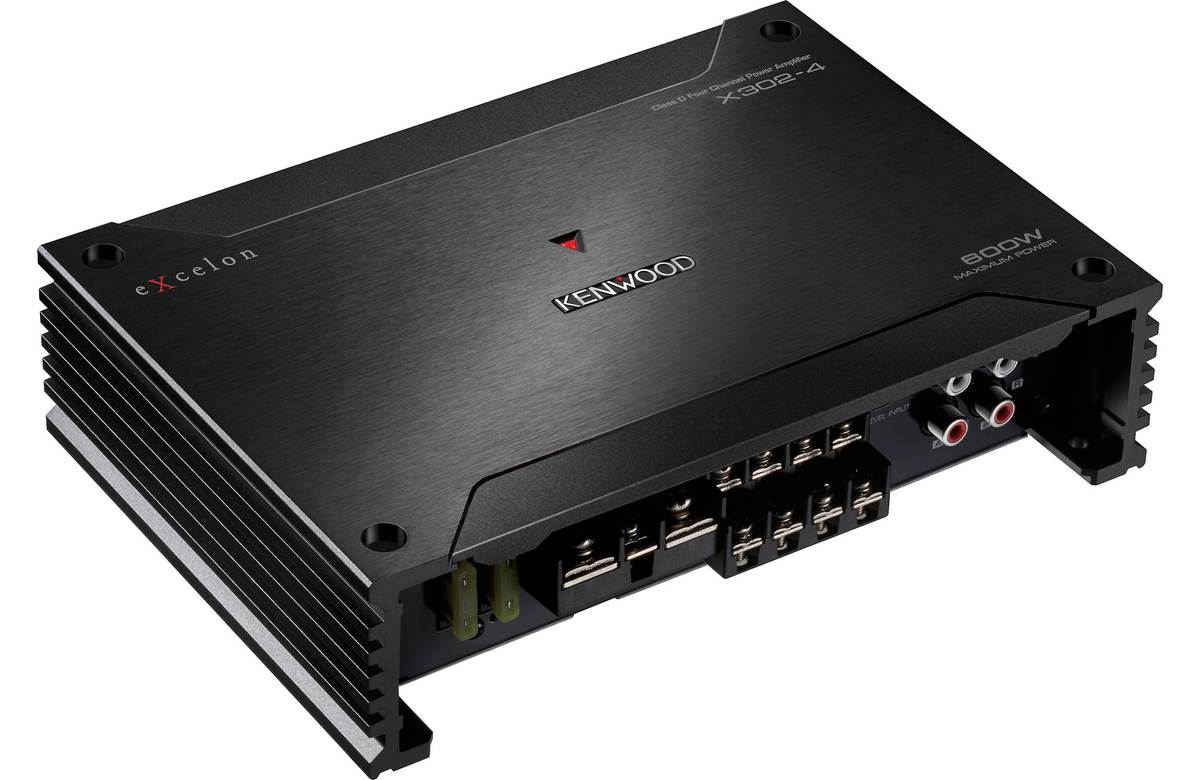

Kenwood’s Excelon X302-4 four-channel amplifier delivers 50 watts RMS per channel, yet still fits almost anywhere in your vehicle. Switch this amp over to bridged, 2-channel mode, and you can power a pair of high-performance speakers or subs with 150 watts RMS each. In 3-channel mode, you can use the amp’s front channels to drive a pair of speakers with 50 watts each, and bridge the rear channels to send 150 watts to a sub.
This versatility pays off as your system evolves over time.
High-and low-pass filters let you optimize the sound for your vehicle and speakers. When you’re running a subwoofer with the rear channels, you can adjust a bass boost to get just the right tone to fit your musical tastes.
Class D technology ensures that this compact amp will run cool and perform reliably. Kenwood divided the amp’s internal circuitry (analog, digital, and power supply) onto separate, non-overlapping circuit boards for improved overall sound quality.
Power Handling:
- 50 watts RMS x 4 at 4 ohms
- 75 watts RMS x 4 at 2 ohms
- 150 watts RMS x 2 bridged at 4 ohms (4-ohm stable when bridged)
- Class D amp technology

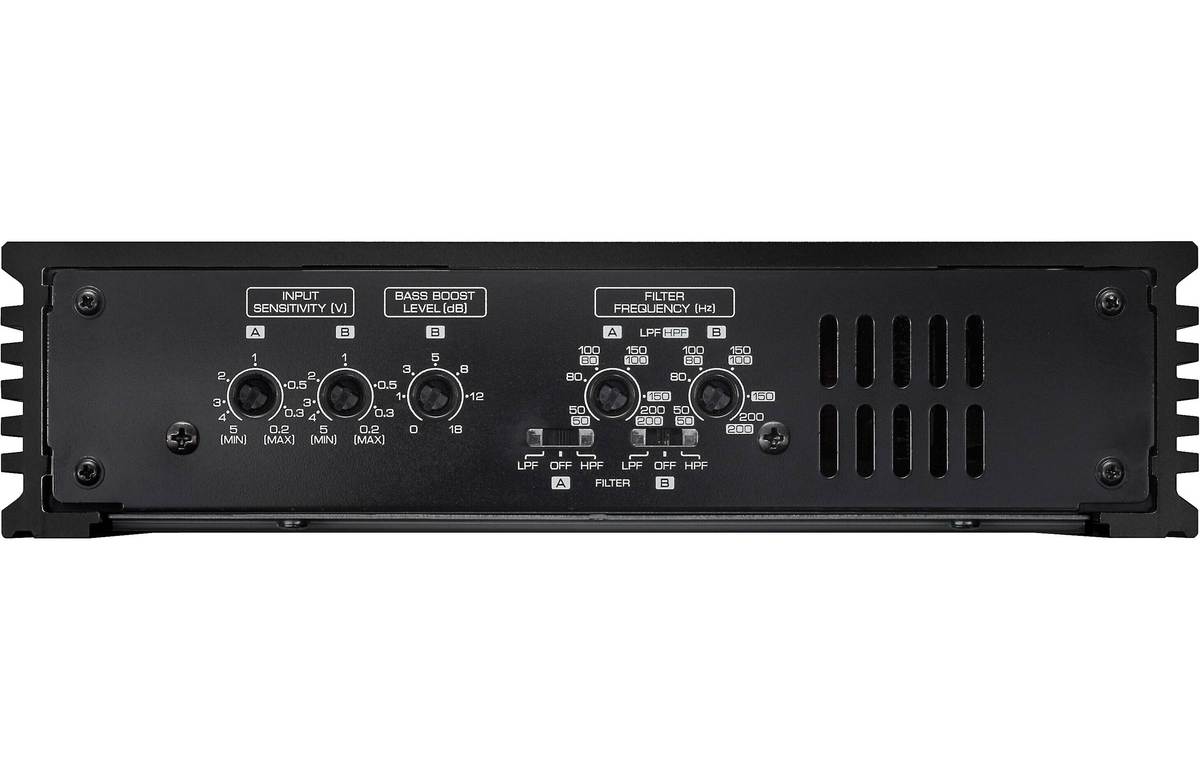

- Variable high- and low-pass filters (50-200 Hz, 12 dB/octave)
- Variable bass boost on B channels (0-18 dB at 40 Hz)

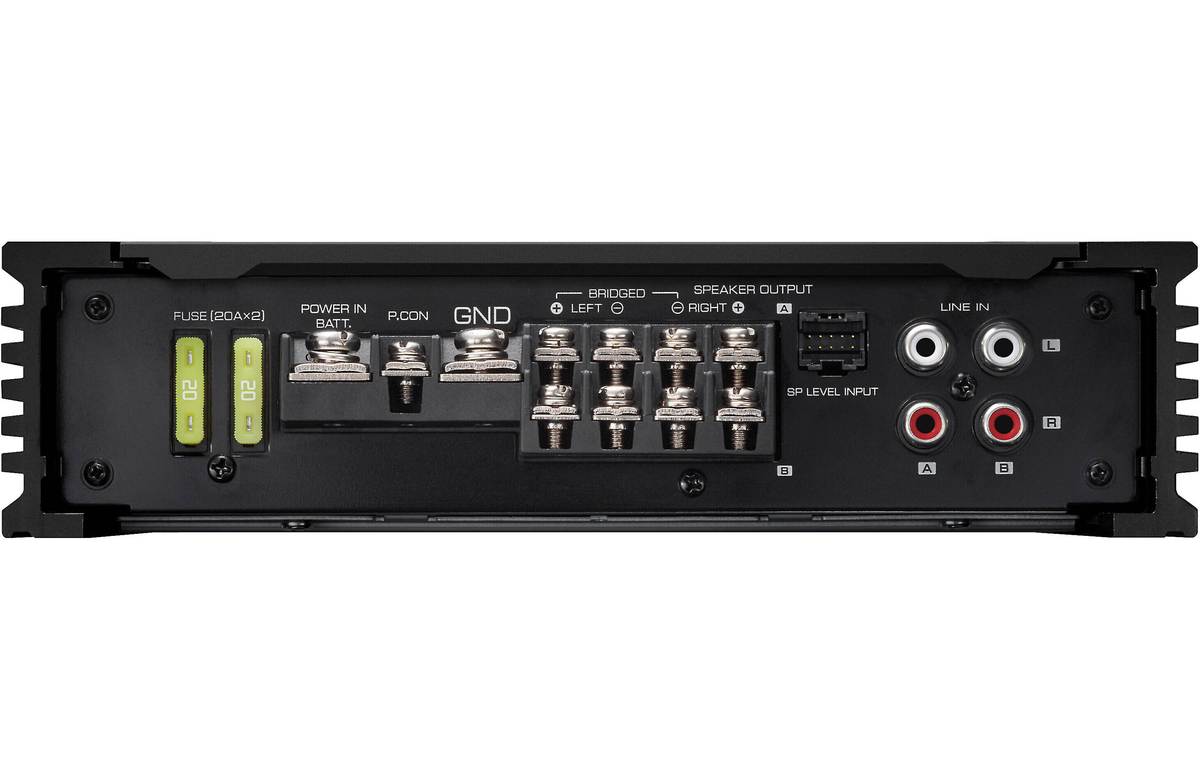

- RCA and speaker-level inputs
- 8-gauge power and ground leads recommended (not included)
- Fuse rating: 20A x 2
- 8-7/16″W x 2-1/8″H x 5-15/16″D
