Description
| General System | ||
| Radio Region | Global | |
| OS System | Linux | |
| Front Face | ||
| Panel Dimension | 178X100mm | |
| Screen Size & Resolution | 6.8″ / 1024X600 | |
| Touch Screen | Capacitive Glass Type | |
| USB Interface | ||
| Rear 1M Pig Tail USB (Type A) | Play / Charge /Smart Phone Connectivity | |
| Smart Phone Connectivity | ||

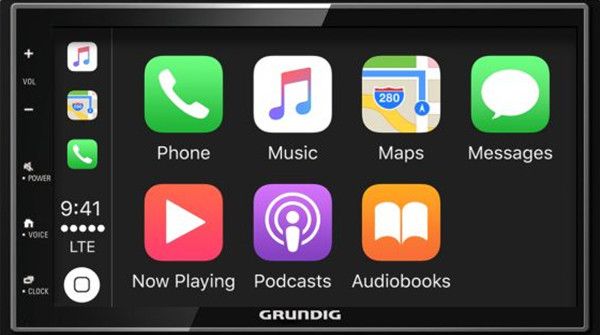

| CarPlay | via USB | |
| Android Auto | via USB | |
| Andriod Mirroring & Touch | Mirroring via USB / Touch via BT | |
| iPhone Mirroring & Touch | Mirroring via USB / Touch via BT | |
| USB Media Playback | ||
| Lossless Music Format | FLAC / WAV | |
| HD 1080P Video Format | H.264 / WMV / FLV / MP4 / MKV | |
| File System | FAT16,32 / NTFS / exFAT | |
| ID3 Information display | Yes | |
| Album artwordk display | Yes | |
| Random | Folder | |
| Repeat | Folder/file/All | |
| Music Browser | Song / Artist / Album / Files Search | |
| iPod / iPhone (MFI) | ||
| Playback via BT | Yes | |
| Music list Browser via CarPlay | YES | |
| Music list Browser via BT | YES | |
| Album Artwork Display via CarPlay | YES | |
| Album Artwork Display via BT | YES | |
| Bluetooth Connectivity | ||
| Version | v4.1 | |
| HFP | v1.6 | |
| Private Mode | Yes | |
| Call ID with Caller name | Yes | |
| Call Waiting | Yes | |
| Call history | Yes | |
| A2DP | v1.2 | |
| Codec | SBC | |
| AVRCP | v1.5 | |
| ID3 information | Yes | |
| Wireless Broswe | iPhone & Andriod | |
| PBAP (Phone Book) | v1.0 (2000 Phone List) | |
| Phonebook Alphabet Search | English | |
| SSP (Auto Pairing) | Yes | |
| Built in ring tone | Yes | |
| SPP | Yes | |
| iAP over Bluetooth | Yes | |
| Voice Call | Siri / Google | |
| FM Radio | ||
| Digital Tuner | Yes | |
| DSP Noise Adjust | Yes | |
| RDS/RBDS (PTY) System | Yes | |
| Preset Memory | 24 x FM | |
| Band | FM X 1 | |
| Radio Text Plus | Yes | |
| Seek up/down | Yes | |
| Auto store | Yes | |
| Manual store | Yes | |
| AM Radio | ||
| Digital Tuner | Yes | |
| DSP Noise Adjust | Yes | |
| Preset Memory | 12 x AM | |
| Band | AM x 1 | |
| Seek up/down | Yes | |
| Auto store | Yes | |
| Manual store | Yes | |
| DSP Audio Processor | ||
| EQ Band | 13 Band | |
| Crossover | High & Low Pass Filer | |
| Listen Position Preset | Audio Zone | |
| Time Aligment | Yes | |
| Virtual Front Tweeter | Yes | |
| Virtual Rear SubW Out | Yes | |
| Audio System | ||
| Max Power Output | MOSFET 4x50W | |
| RMS Power Output | 4x22W | |
| Preout Level | 4V x 3 RCA (Front / Rear / SubW) | |
| Samrt Phone Charge | ||
| iPhone | USB 1.5A | |
| Andriod Phone | USB 1.5A | |
| Standard | BC1.2 | |
| GUI | ||
| GUI | 32bit Gesture GUI | |
| Open screen | Fixed Image | |
| Source Shortcut button | Customize 6 shortcut | |
| User Wall Paper | Default x 3 / UserSelf Capture x 2 | |
| Standby (Power off) | Black Screen Mode or Clock Mode | |
| Widgets | Clock / DDMMYY / Playback info | |
| Rear View Camera advisory message–OPTIONAL | Yes | |
| Rear View Camera parking guide line-OPTIONAL | Enable & Disable selectable | |
| Lanugages | English | |
| External I/F | ||
| Parking Brake Detect | Yes | |
| Back up Revserse Wire | Yes | |
| Back Up Camera In | CVBS or Rear DVR | |
| CVBS Video out | Yes | |
| Headlight Detect | Yes | |
| DVR Input | 10 Pin Pig tall ( OPTIONAL ) | |
| USB | Pig Tail | |
| External Microphone input | 3.5mm input | |
| Steering Wheel Control ( SWC ) AD-resistive type | Yes | |
| Steering Wheel Control ( SWC ) IR-IR SWC interface box Comptiable Connect2 |
Yes | |
| Harness Type | ISO Harness (on board) | |
| Accessory | ||
| Microphone | 3 Meters External Mic | |
| SW Upgrade | ||
| OS | Yes via USB | |
| System | Yes via USB | |
| BT | Yes via USB | |
| TV | Yes via USB | |
| Certificate | ||
| Apply CarPlay | Yes | |
| Google Andriod Auto | Yes | |
| Apple MFI (iAP over USB) | Yes | |
| Bluetooth BQE | Yes | |
| Safety standard | ||
| RED (CE Mark) | Yes | |
| RoHs | Yes | |
